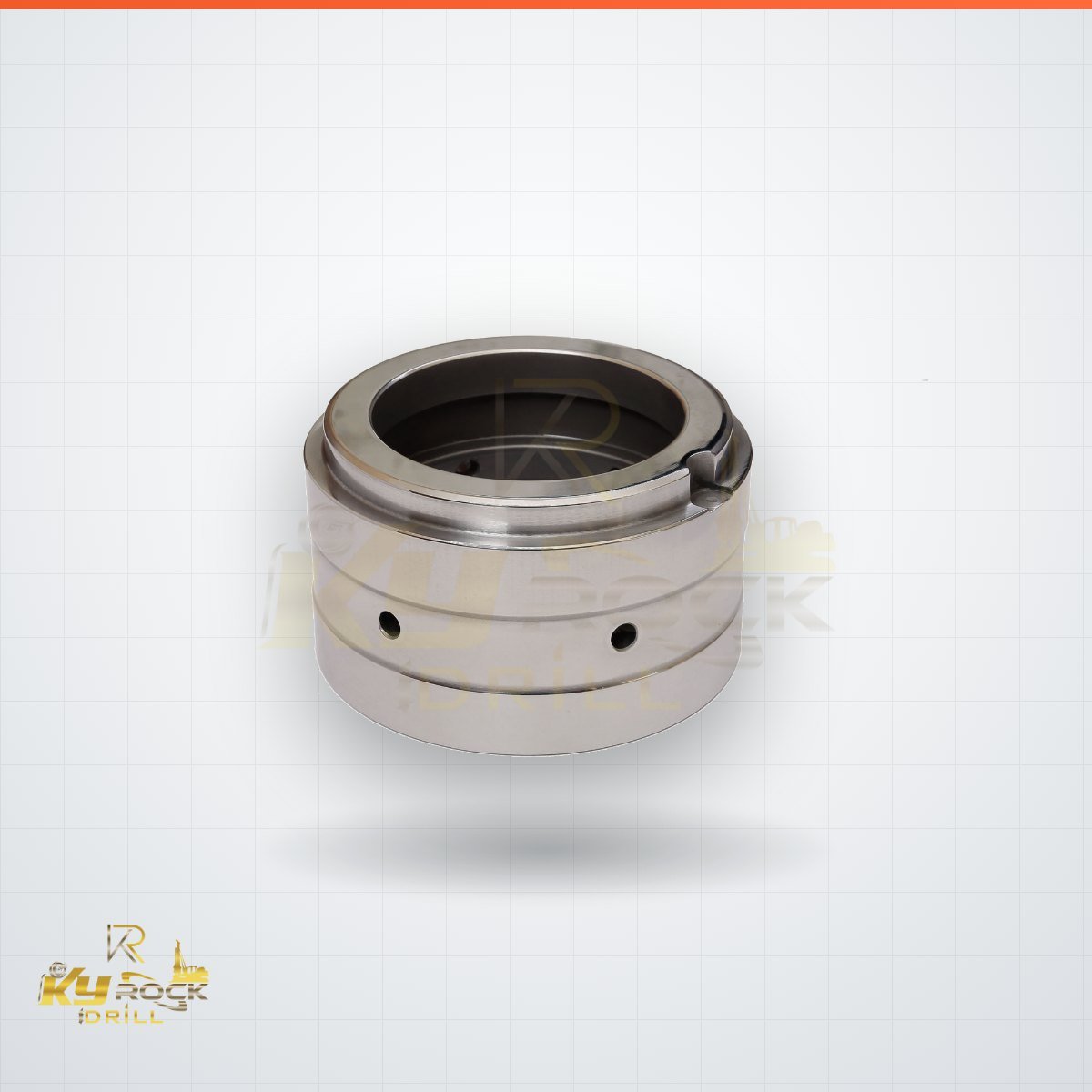

GUIDE 2686 3450 22 / 2686345022 — Epiroc (Atlas Copco) Compatible
GUIDE is a high-strength aftermarket spare part fully compatible with Epiroc hydraulic drifters and rock drills. Precision CNC-machined to original-part tolerances. Contact us for stock and delivery on OEM number 2686 3450 22.
Fill in the quote form for price and stock; we'll get back to you shortly.

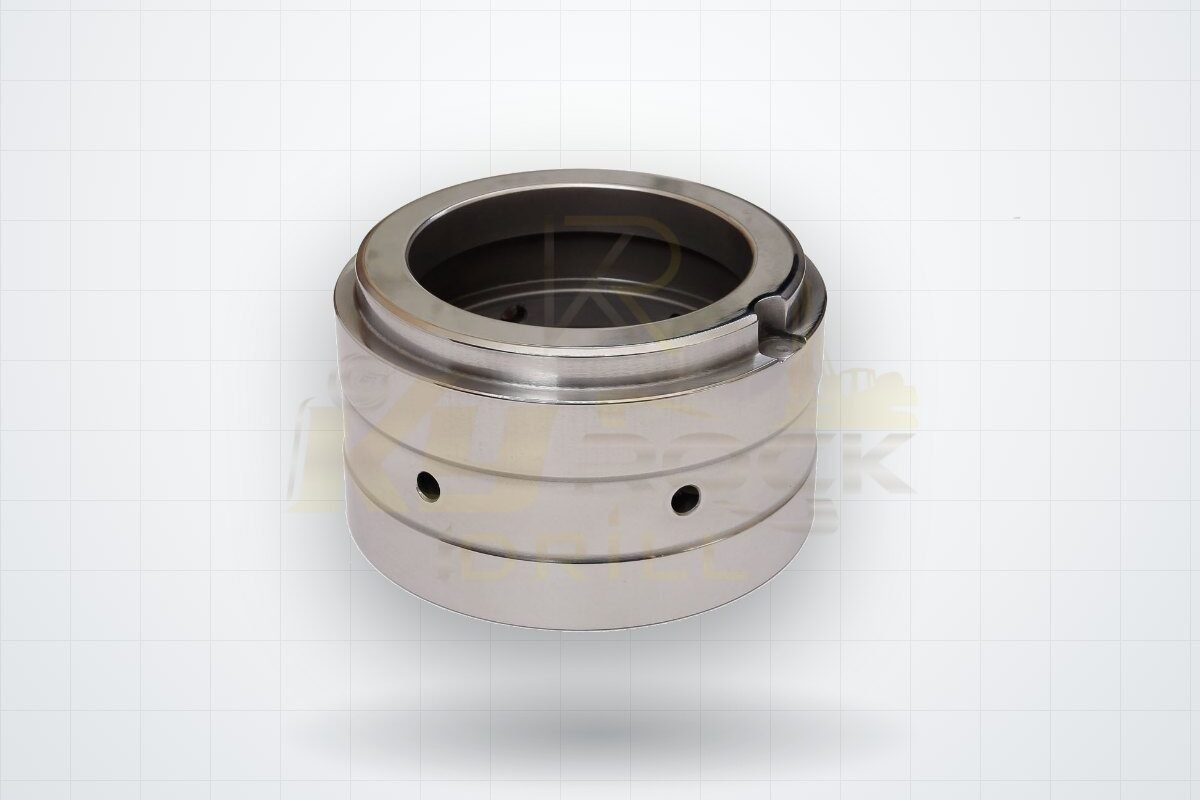

GUIDE — OEM 2686 3450 22 / 2686345022
- OEM Number
- 2686 3450 22
- Also written as
- 2686345022
- Compatible Brand
- Epiroc
- OEM brand
- Epiroc (Atlas Copco)
- Part Type
- Drifter
What the GUIDE does
Guides and slides hold a moving component on its intended path — the drifter on the feed beam, or a shaft within its housing. They are wear surfaces by design, made to be replaced rather than to last.
Signs it needs replacing
- Play or rattle between the moving part and its track
- Uneven or stepped wear along the guide face
- Hole deviation that cannot be corrected by setup
- Accelerated wear on the components the guide is meant to align
Before you fit it
Replace guides as a matching set and reset the clearance to specification. Running worn guides puts the whole drill string out of line, and the cost shows up in rods and bits long before anyone blames the guide.
General guidance for this class of component. Always work to the torque figures, clearances and service intervals in your machine's own manual.
About This Part
Which machines does GUIDE (OEM 2686 3450 22) fit?
It is used on Epiroc hydraulic rock drills and drifters. Models we already carry parts for: 1638+ ROCK DRILL (DRIFTER), 1838+ ROCK DRILL (DRIFTER), 1838HD+ ROCK DRILL (DRIFTER), 3060ME ROCK DRILL (DRIFTER), 3060MUX ROCK DRILL (DRIFTER), 4050MUX ROCK DRILL (DRIFTER). If yours is not listed, send us the OEM number and we will confirm the fit.
How should I write the OEM number?
This part number is written two ways: 2686 3450 22 (spaced) and 2686345022 (unspaced). Both refer to the same part, and the site search finds either spelling.
Is this an original Epiroc (Atlas Copco) part?
No. This is an aftermarket part manufactured by KY Rock Drill and CNC-machined to original-part tolerances. We are not affiliated with or an authorised dealer for Epiroc (Atlas Copco); the OEM number is quoted only to identify compatibility.
