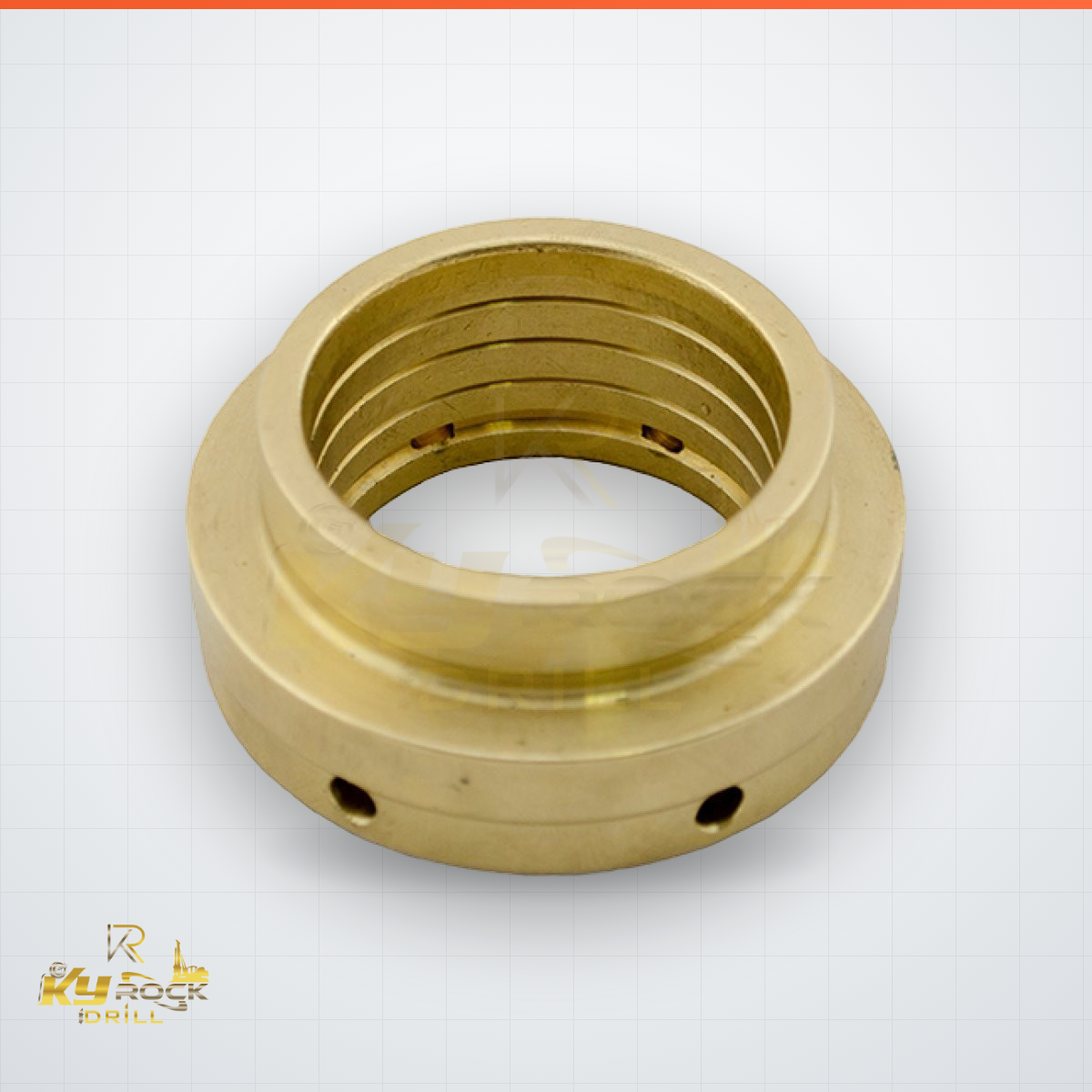

PISTON GUIDE 3115 1671 00 / 3115167100 — Epiroc (Atlas Copco) Compatible
PISTON GUIDE is a high-strength aftermarket spare part fully compatible with Epiroc hydraulic drifters and rock drills. Precision CNC-machined to original-part tolerances. Contact us for stock and delivery on OEM number 3115 1671 00.
Fill in the quote form for price and stock; we'll get back to you shortly.

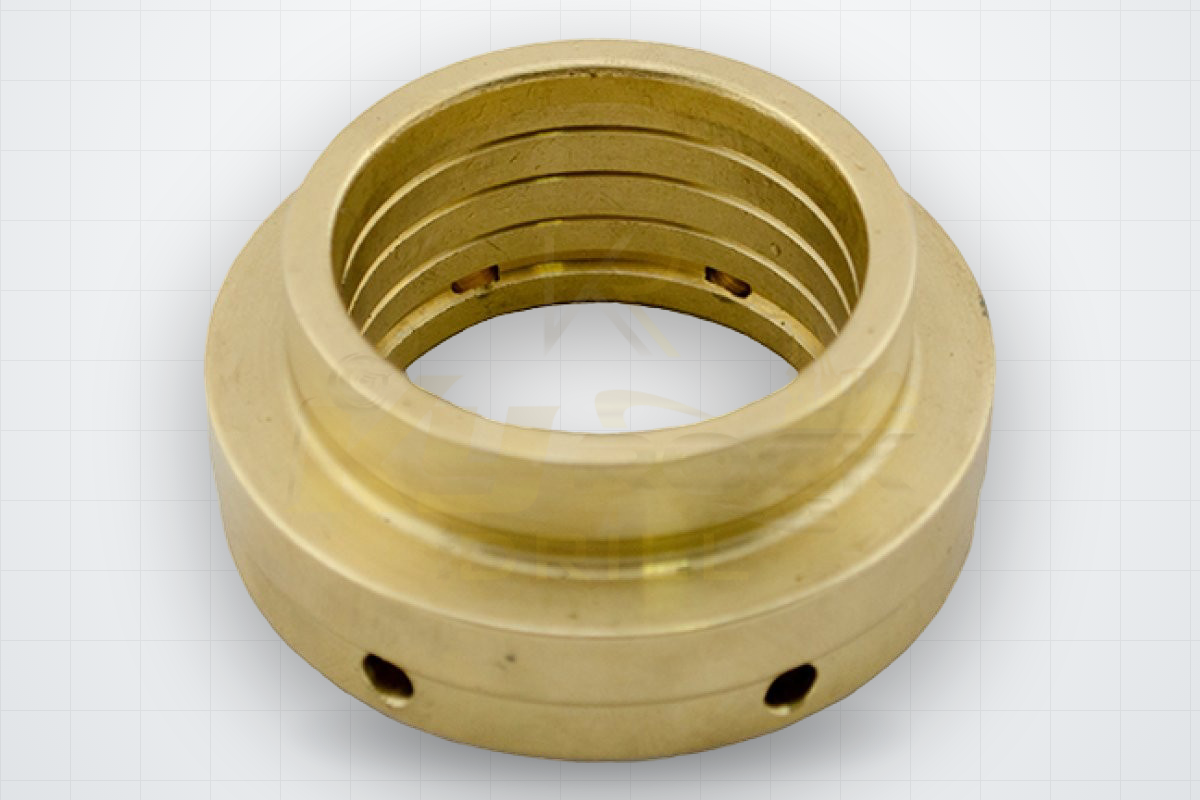

PISTON GUIDE — OEM 3115 1671 00 / 3115167100
- OEM Number
- 3115 1671 00
- Also written as
- 3115167100
- Compatible Brand
- Epiroc
- OEM brand
- Epiroc (Atlas Copco)
- Part Type
- Drifter
What the PISTON GUIDE does
The percussion piston is the component that actually does the drilling. Hydraulic pressure drives it forward to strike the shank adapter, transferring an energy pulse down the drill string to the bit; the distributor then reverses it for the return stroke. Everything else in the drifter exists to feed, guide, seal or dampen this one moving mass.
Signs it needs replacing
- Loss of penetration rate with normal pressure and flow at the machine
- A change in the drifter's sound — a duller or irregular beat
- Visible bruising, pitting or chipping on the strike face
- Scoring along the sealing lands, which then destroys seals repeatedly
Before you fit it
A piston is never replaced alone. The bushings it runs in and the seals riding on it have worn to match its old surface, and reusing them puts a new piston straight back into a worn bore. Check the strike face of the shank adapter at the same time: a mushroomed shank end damages a new piston on its first shift.
General guidance for this class of component. Always work to the torque figures, clearances and service intervals in your machine's own manual.
About This Part
Which machines does PISTON GUIDE (OEM 3115 1671 00) fit?
It is used on Epiroc hydraulic rock drills and drifters. Models we already carry parts for: 1638+ ROCK DRILL (DRIFTER), 1838+ ROCK DRILL (DRIFTER), 1838HD+ ROCK DRILL (DRIFTER), 3060ME ROCK DRILL (DRIFTER), 3060MUX ROCK DRILL (DRIFTER), 4050MUX ROCK DRILL (DRIFTER). If yours is not listed, send us the OEM number and we will confirm the fit.
How should I write the OEM number?
This part number is written two ways: 3115 1671 00 (spaced) and 3115167100 (unspaced). Both refer to the same part, and the site search finds either spelling.
Is this an original Epiroc (Atlas Copco) part?
No. This is an aftermarket part manufactured by KY Rock Drill and CNC-machined to original-part tolerances. We are not affiliated with or an authorised dealer for Epiroc (Atlas Copco); the OEM number is quoted only to identify compatibility.
